THE ULTIMATE GRAB-AND GO ASTROGRAPH !!

The all-new Honders Advanced Catadioptric, or HAC125DX Minigraph is the smallest, fastest astrograph you can find.

The Honders Advanced Catadoptric optical design maximizes its glass with hybrid refractive and reflective surfaces to deliver the sharpest, fastest, lightest catadioptric mini astrograph (minigraph) available.

The Sky-Watcher Honders Advanced Catadioptric (HAC) telescope is a sophisticated, high-speed astrograph designed for fast, wide-field imaging in a compact and lightweight package. Unlike other small refractor astrographs, the HAC125DX features a lightning-fast f/2 focal ratio allowing you to capture images 5x faster than a standard f/4.9 optic. With this kind of speed that means more data in less time and no need to autoguide!

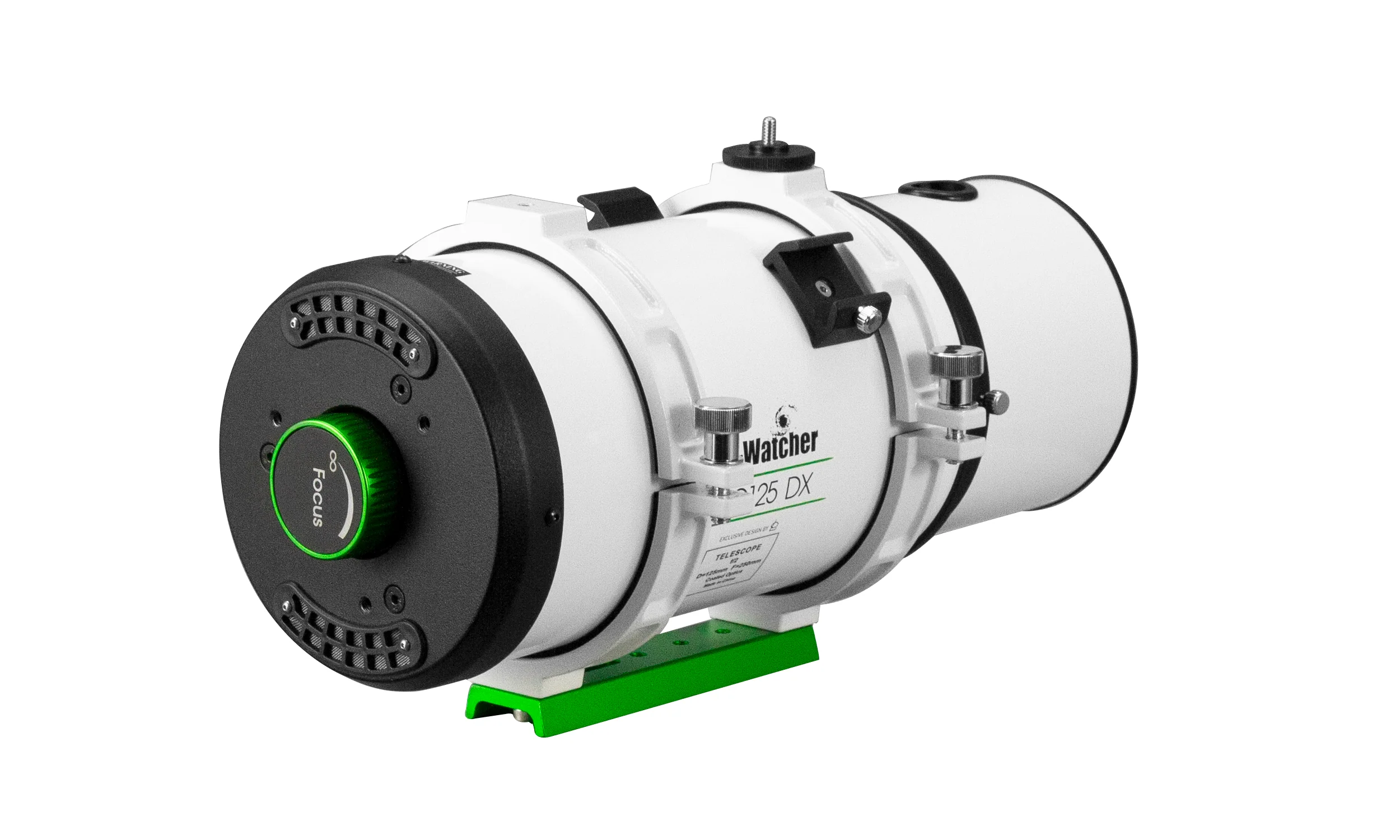

Compared to the original HAC125 the HAC125DX features a rear focusing mechanism on the primary. This allows for a wider range of cameras to be used compared to the original model and makes focusing easier when the telescope is in use. The telescope features a 16mm image circle which is ideal for IMX533 and 585 cameras. Whilst small at only 40cm long, the HAC125DX offers a powerful imaging platform for both beginners and advanced imagers.

The HAC125DX is the ultimate grab-and-go astrograph. Fast optics and small size make it easier to get out and enjoy the hobby you love. Attach it to your favourite portable mount and you are ready to capture the universe in virtually no time at all! The HAC125DX is not just another astrograph, it’s a Minigraph that is ready for all your astronomy adventures.

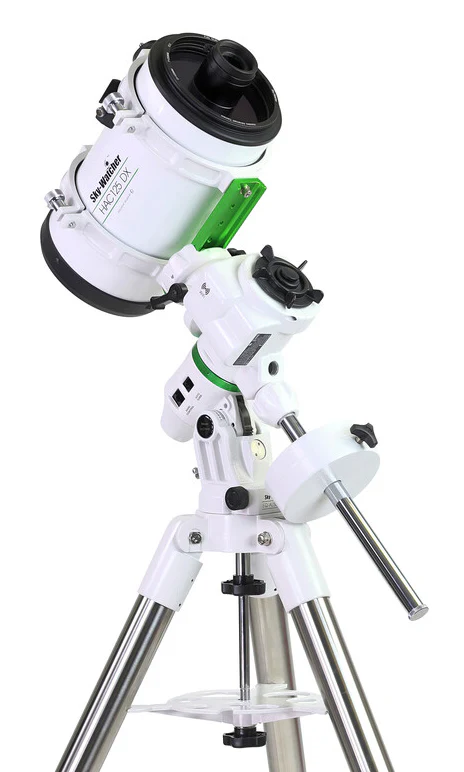

The EQ-AL55i PRO SynScan computerised go-to mount is fully controllable with a smart device via it's built in Wi-Fi module using the free Synscan Pro App for iOS or Android with a 10,000+ celestial object database. The mount can be used at all latitudes and features a built-in illuminated polar scope for precision alignment, interfaces for USB-C, autoguider, optional SynScan hand controller and SNAP shutter control for your DSLR (programmable via Sky-Watcher’s free SynScan Pro app for iOS and Android).

Telescope Technical Specification

Honders Advanced Catadioptric optical design
Focal Length: 250mm
Fast f/2 focal ratio
Aperture Diameter: 125mm (5")
Mirror Type (Monolithic/Conical/Fused conical): Mangin
Radiant Aluminum Quartz (RAQ)™ mirror coatings
Corrector coating: HTMC™
Weight 3.82kg
Length 40cm
16mm image circle
Secondary obstruction 53mm
Collimatable primary mirror cell
Rear primary mirror helical focuser
Tube rings with a 45mm dovetail bar
Dual finderscope brackets
1.25-inch barrel

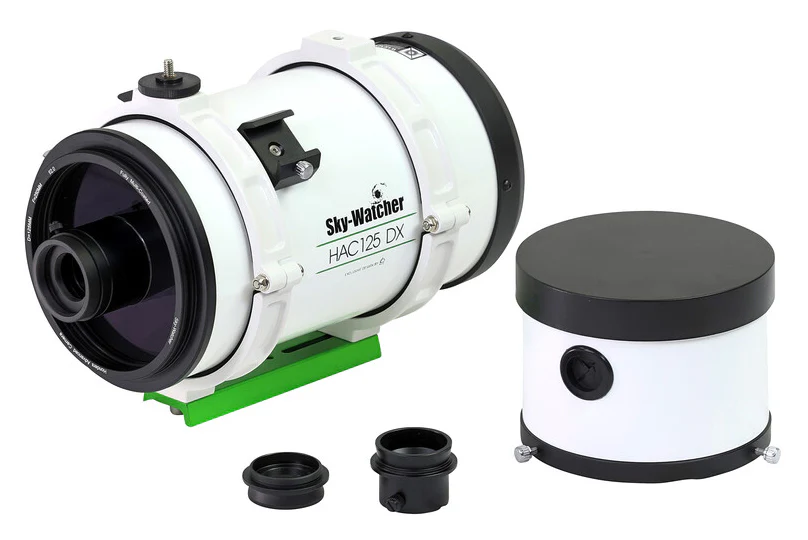

Included accessories: 1.25-inch adaptor, M42x0.75 adaptor, dew shield

Payload capacity for astrophotography camera: 300g

Mount Technical Specification

High Precision DC servo Motors.
RA axis Resolution 0.32 Arc Second
Slewing speed up to 4°/sec (1000X).
Ports: USB, SNAP, Power, ST-4 & Synscan Hand Controller (optional)
Built-in Wi-Fi Module
ST-4 type Autoguider Interface: Supports 0.25x, 0.5x, 0.75x 1x guiding rate
Single Axis Tracking
Tracking Rate: Lunar, Solar or Sidereal
Controller: Synscan Pro App (iOS, Android or PC)
Compatible with Synscan™ Hand Controller (optional accessory) with 42,900+ Object database containing complete Messier, NGC, and IC catalogues.
Supplied with Polarscope with LED illumination
Latitude Adjustment 0° to 90°
R.A. Worm Gear 73.4mm Diameter, 144 Teeth
DEC Worm Gear 51.6mm Diameter, 100 Teeth
R.A. Worm Drive 11mm Diameter
DEC Worm Drive 11mm Diameter
45mm Dovetail Saddle
Payload Capacity 10kg
Counterweight Bar 20mm Diameter, Mountable in 2 x Positions
Counterweights supplied: 1 set of 5.3kg (1.8kg & 3.5kg)
Weight of Mount Head only: 3.8kg
1.75" Diameter Stainless Steel Tripod & Accessory Tray, Weight 5.7kg
Power Requirement DC12V 2A Tip Positive (via external supply)
